Stainless steel conveyor chains with top rollers

Stainless steel conveyor chains with top rollers

Stainless steel conveyor chains with top rollers
Stainless steel conveyor chains with top rollersStainless steel conveyor chains with top rollersStainless steel conveyor chains with top rollers
CategoriesStainless steel conveyor chains
AlbumView larger image
Brandzmie
FOB portShanghai
Terms of PaymentT/T
Update Time2018-06-23
Detail Information

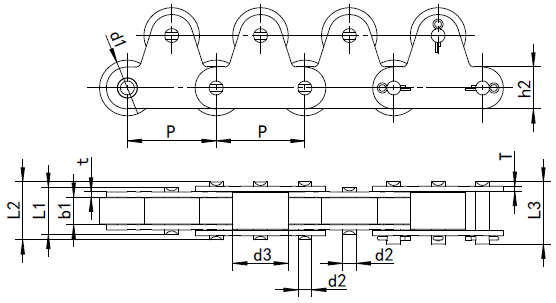

Stainless steel conveyor chains with top rollers

ZMIE
Chain No.
PitchWidth
between
inner plates
Roller
diameter
Pin
diameter
Pin lengthInner
plate
depth
Plate
thickness
Top roller
diameter
Pb1
min
d1
max
d2
max
L1
max
L2
max
L3
max
h2
max
t/T
max
d3
max
mmmmmmmmmmmmmmmmmmmm
2040-TRSS25.40 7.85 7.95 3.96 13.5 16.6 17.8 12 1.5 15.88
2042-TRSS25.40 7.85 15.88 3.96 13.5 16.6 17.8 12 1.5 15.88
2050-TRSS31.75 9.40 10.16 5.08 16.5 20.7 22.2 15 2.0 19.05
2052-TRSS31.75 9.40 19.05 5.08 16.5 20.7 22.2 15 2.0 19.05
2060-TRSS38.10 12.57 11.91 5.94 21.0 25.9 27.7 18 2.4 22.23
2062-TRSS38.10 12.57 22.23 5.94 21.0 25.9 27.7 18 2.4 22.23
2080-TRSS50.80 15.75 15.88 7.92 26.2 32.7 35.0 24 3.2 28.58
2082-TRSS50.80 15.75 28.58 7.92 26.2 32.7 35.0 24 3.2 28.58
2100-TRSS63.50 18.90 19.05 9.53 32.3 40.4 44.7 30 4.0 39.67
2102-TRSS63.50 18.90 39.67 9.53 32.3 40.4 44.7 30 4.0 39.67
