Stainless steel conveyor chains with scraper

Stainless steel conveyor chains with scraper

Stainless steel conveyor chains with scraper
CategoriesStainless steel conveyor chains
AlbumView larger image
Brandzmie
Update Time2018-06-21
Detail Information
Stainless steel conveyor chains with scraper


ZMIE

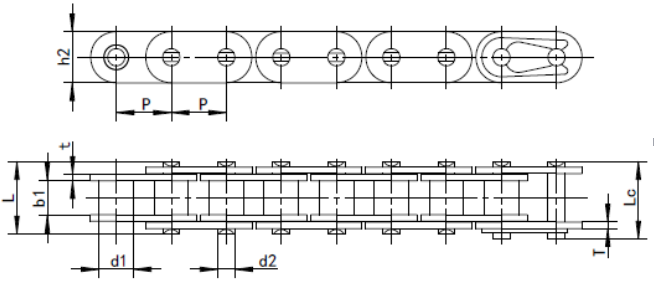

Chain No.
PitchRoller
diameter
Width
between
inner plates
Pin
diameter
Pin lengthInner
plate
depth
Plate
thickness
Ultimate
tensile
strength
Weight
per
meter
Pd1
max
b1
min
d2
max
L
max
Lc
max
h2
max
t/T
max
Q
min
q
mmmmmmmmmmmmmmmmKNkg/m
C208A-SSC2040SS25.40 7.95 7.85 3.96 16.60 17.80 12.00 1.50 8.46 0.50
C208AL-SSC2042SS15.88 0.84
C208AH-SSC2040HSS7.95 18.80 19.90 12.00 2.03 8.46 0.65
C208B-SS 25.40 8.51 7.75 4.45 16.70 18.20 11.80 1.60 10.80 0.55
C208BL-SS 15.88 0.89
C210A-SSC2050SS31.75 10.16 9.40 5.08 20.70 22.20 15.00 2.03 13.32 0.78
C210AL-SSC2052SS19.05 1.27
C212A-SSC2060SS38.10 11.91 12.57 5.94 31.60 27.70 18.00 2.42 19.08 1.12
C212AL-SSC2062SS22.23 1.61
C212AH-SSC2060HSS11.91 36.50 31.60 18.00 3.25 19.08 1.44
C212AHL-SSC2062HSS22.32 2.07
C216A-SSC2080SS50.80 15.88 15.75 7.92 32.70 36.50 24.00 3.25 34.02 2.08
C216AL-SSC2082SS28.58 3.12
C216AH-SSC2080HSS15.88 36.20 39.40 24.40 4.00 34.02 2.54
C216AHL-SSC2082HSS28.58 3.58
C220A-SSC2100SS63.50 19.05 18.90 9.53 40.40 44.70 30.00 4.00 53.10 3.01
C220AL-SSC2102SS39.67 4.83
C220AH-SSC2100HSS19.05 43.60 46.90 30.00 4.80 53.10 3.56
C220AHL-SSC2102HSS39.67 5.38
C224A-SSC2120SS76.20 22.23 25.22 11.10 50.30 54.30 35.70 4.80 76.20 4.66
C224AL-SSC2122SS44.45 7.66
C224AH-SSC2120HSS22.23 53.50 57.50 35.70 5.60 76.20 5.26
C224AHL-SSC2122HSS44.45 8.26
C232A-SSC2160SS101.60 28.58 31.75 14.27 64.80 69.60 47.80 6.40 136.08 8.23
C232AL-SSC2162SS57.15 11.95
C232AH-SSC2160HSS28.58 68.20 73.00 47.80 7.20 136.08 9.06
C232AHL-SSC2162HSS57.15 12.77
