Stainless steel short pitch roller chain with straight side plates

Stainless steel short pitch roller chain with straight side plates

Stainless steel short pitch roller chain with straight side plates
CategoriesStainless steel short pitch roller chains
AlbumView larger image
Brandzmie
Update Time2018-09-25
Detail Information
Stainless steel short pitch roller chain with straight side plates

ZMIE

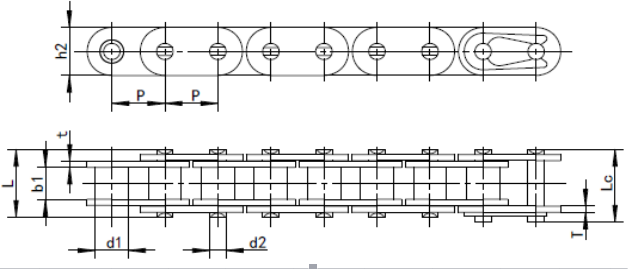

Chain No.
PitchRoller
diameter
Width
between
inner plates
Pin
diameter
Pin lengthInner
plate
depth
Plate
thickness
Ultimate
tensile
strength
Weight
per
meter
Pd1
max
b1
min
d2
max
L
max
Lc
max
h2
max
T
max
Q
min
q
mmmmmmmmmmmmmmmmKNkg/m
C08ASS-1C40SS-112.70 7.95 7.85 3.96 16.60 17.80 12.00 1.50 9.80 0.72
C10ASS-1C50SS-115.87510.16 9.40 5.08 20.70 22.20 15.09 2.03 21.30 1.22
C12ASS-1C60SS-119.05 11.91 12.57 5.94 25.90 27.70 18.00 2.42 25.30 1.80
C16ASS-1C80SS-125.40 15.88 15.75 7.92 32.70 35.00 24.00 3.25 45.70 3.10
C20ASS-1C100SS-131.75 19.05 18.90 9.53 40.40 44.70 30.00 4.00 66.60 4.55
C24ASS-1C120SS-138.10 22.23 25.22 11.10 50.30 51.30 35.70 4.80 98.30 6.87
C08BSS-1 12.70 8.51 7.75 4.45 16.70 18.20 11.80 1.60 12.20 0.82
C10BSS-1 15.87510.16 9.65 5.08 19.50 20.90 14.70 1.70 16.20 1.07
C12BSS-1 19.05 12.07 11.68 5.72 22.50 24.20 16.00 1.85 17.70 1.33
C16BSS-1 25.40 15.88 17.02 8.28 36.10 37.40 21.00 4.15/3.146.70 3.10
C20BSS-1 31.75 19.05 19.56 10.19 41.30 45.00 26.40 4.5/3.564.30 4.18
C24BSS-1 38.10 25.40 25.40 14.63 53.40 57.80 33.20 6.0/4.8115.60 7.48
