Stainless steel conveyor chains with rubber blocks

Stainless steel conveyor chains with rubber blocks

Stainless steel conveyor chains with rubber blocks
CategoriesStainless steel conveyor chains
AlbumView larger image
Brandzmie
Update Time2018-09-25
Detail Information
Stainless steel conveyor chains with rubber blocks



ZMIE

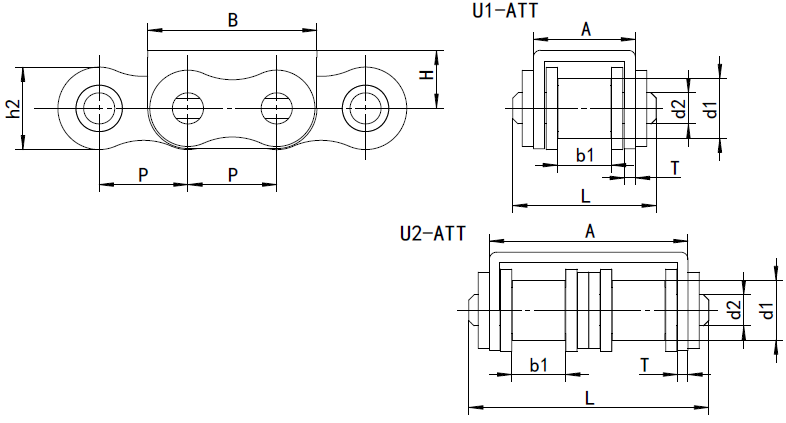

Chain No.
PitchWidth
between
inner plates
Roller
diameter
Pin
diameter
Pin lengthInner
plate
depth
Attachment dimensionUltimate
tensile
strength
Pb1
min
d1
max
d2
max
L
max
h2
max
ABHT
max
Q
min
mmmmmmmmmmmmmmmmmmmmKN
08B-U1SS12.70 7.75 8.51 4.45 20.0 11.8 14.6 24.2 8.3 1.6 12.60
08B-U2SS12.70 7.75 8.51 4.45 34.3 11.8 28.4 24.2 8.3 1.5 22.40
10B-U1SS15.875 9.65 10.16 5.08 23.2 14.7 16.8 30 11.3 1.60 13.30
10B-U2SS15.875 9.65 10.16 5.08 39.7 14.7 33.3 30 11.3 1.50 31.15
12B-U1SS19.05 11.68 12.07 5.72 25.7 16.0 19.6 36 13.0 1.85 20.30
12B-U2SS19.05 11.68 12.07 5.72 45.3 16.0 39.1 36 12.0 1.85 40.46
16B-U1SS25.40 17.02 15.88 8.28 39.7 21.0 29.05 49 15.4 2.40 40.60
16B-U2SS25.40 17.02 15.88 8.28 71.7 21.0 60.9 49 16.2 2.40 74.20
20B-U1SS31.75 19.56 19.05 10.19 48.0 26.4 36.0 57 21.0 3.50 59.50
